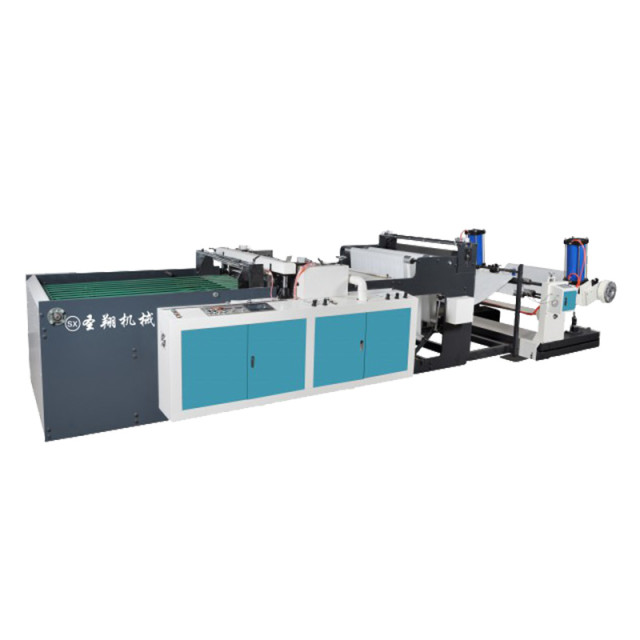

SX-E800 Cross Cutting Machine with Convey, SX-E800 Cross Cutting Machine with Convey Factory supply-Shengxiang Machinery: Achieve ur roll material slitting & cutting in High Precision

Product Details

This machine suitable for Cutting all kinds of thin paper (28-100g), PVC, PET flim, paper-plastic composite, cloth, leather and other large drum packaging materials,etc.

It adopts serve motor for controlling constant-length cutting.

It adopts pneumatic, photoelectric sensor for controlling transmission system, with photocell, gas together.

it has the functions of easy operation, high precision, good stability, low noise. (photo tracking function is optional.)

this machine has the function of the frequency converter timing device, automatic counting, stop work by alarm magnet powder tension control.

Technical Parameters

Model	SX-E800	SX-E1100	SX-E1400
Cutting Width	800 mm	1100 mm	1400 mm
Min Vertical Cutting Width	50 mm	50 mm	50 mm
Max Diameter of Material	φ1400 mm	φ1400 mm	φ1400 mm
Cutting Speed	20-200 times/min	20-200 times/min	20-200 times/min
Cutting Precision	±0.2 mm	±0.2 mm	±0.2 mm
Total Power	8 kw	9.5 kw	11 kw
Weight	3500 kg	4000 kg	4500 kg
Overall Size (L x W x H)	650017001400 mm	650020001400 mm	650023001400 mm

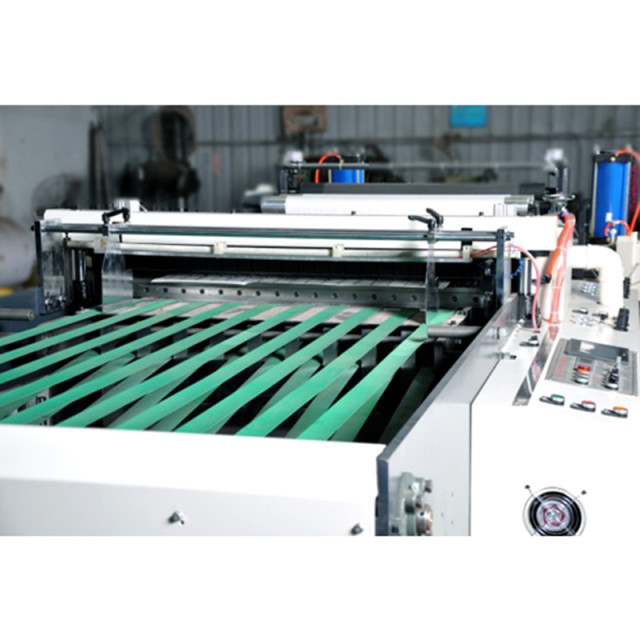

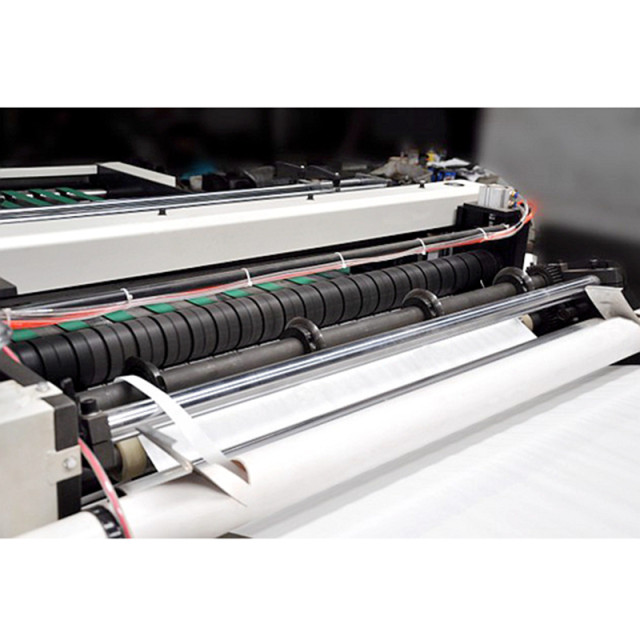

Machine Details

Why Choose Us

Why Choose Us - Shengxiang

1. Quality Warranty

One Year Warranty
We PromiseCommissioning services: Product arrived on site, Our Technical Staff Will Guide you to Finish installation,
commissioning, and
training How to operations Until you get it (Installation charge, buyer responsible)

2. Training Services

We will provided a comprehensive technical training if necessary Training Include as following:
(1) Normal operating procedures for equipment training.
(2) Knowledge of routine maintenance on equipment training.
(3) Introduction of the equipment and service solutions for training.

3. Lifetime Service

Warranty expires, we will provide life-long service to all customers on a regular basis to provide equipment
upgrades and maintenance services.

4. Archives Service

After execution of the contract, we will establishment of archives, including the sale contract,
the technical parameters,
commissioning acceptance of a single report,
the relevant technical drawings.
