1. This machine is 2021 new design. For roll to sheet cutting BOPP films, which is widely applicated in Flower package area.
2. Machine suitbale 0.18-0.2mm thickness, wider feeding roller to cut multi sheets at Once. High output.
3. Stable running of 50-60m/min, collect neatly.

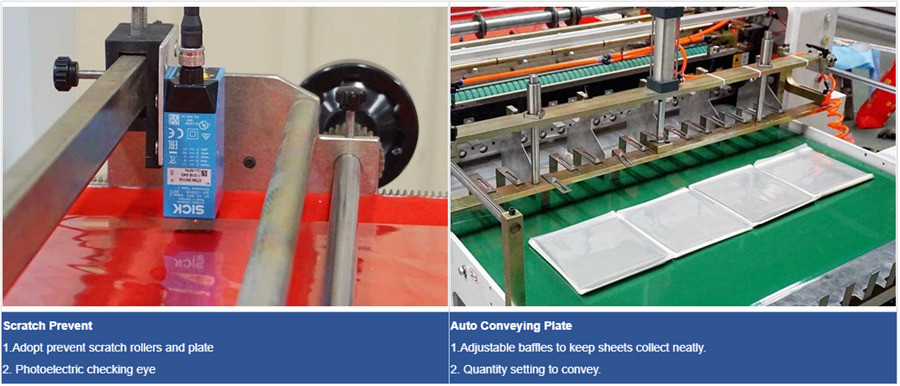

4. Machine adopt high protect rollers and plate to keep finished film without Scratch.
5. Easy operation, high guarantee to your business.
|
Model |
SX-E800 |
SX-E1100 |
SX-E1400 |
|
Cutting Width |
700 mm |
1000 mm |
1300 mm |
|
Min Vertical Cutting Width |
50 mm |
50 mm |
50 mm |
|
Max Diameter of Material |
φ1400 mm |
φ1400 mm |
φ1400 mm |
|
Cutting Speed |
50-60 times/min |
50-60 times/min |
50-60 times/min |
|
Cutting Precision |
±0.2 mm |
±0.2 mm |
±0.2 mm |
|
Total Power |
6 kw |
7 kw |
8.5 kw |
|
Weight |
3200 kg |
3600 kg |
4000 kg |
|
Overall Size (L x W x H) |
6000*1700*1400 mm |
6000*2000*1400 mm |
6000*2300*1400 mm |
Why Choose Us - Shengxiang
1. Quality Warranty
One Year Warranty
We PromiseCommissioning services: Product arrived on site, Our Technical Staff Will Guide you to Finish installation,
commissioning, and
training How to operations Until you get it (Installation charge, buyer responsible)
2. Training Services
We will provided a comprehensive technical training if necessary Training Include as following:
(1) Normal operating procedures for equipment training.
(2) Knowledge of routine maintenance on equipment training.
(3) Introduction of the equipment and service solutions for training.
3. Lifetime Service
Warranty expires, we will provide life-long service to all customers on a regular basis to provide equipment
upgrades and maintenance services.
4. Archives Service
After execution of the contract, we will establishment of archives, including the sale contract,
the technical parameters,
commissioning acceptance of a single report,
the relevant technical drawings.
1. Adopts servo motor for controlling length cutting under accuracy.
2. Double feeding rolls, improve the capacity.
3. Adopt pneumatic, photoelectric sensor for controlling transmission system.
4. This machine integrates light, electricity, gas, simple operation, high cutting precision, stable machine and low noise.
5. Automatic stopping when material finish. Automatic counting.
This machine suitable for Cutting all kinds of thin paper (28-100g), PVC, PET flim, paper-plastic composite, cloth, leather and other large drum packaging materials,etc.
1. It adopts serve motor for controlling constant-length cutting.
2. It adopts pneumatic, photoelectric sensor for controlling transmission system, with photocell, gas together.
3. It has the functions of easy operation, high precision, good stability, low noise. (photo tracking function is optional.)

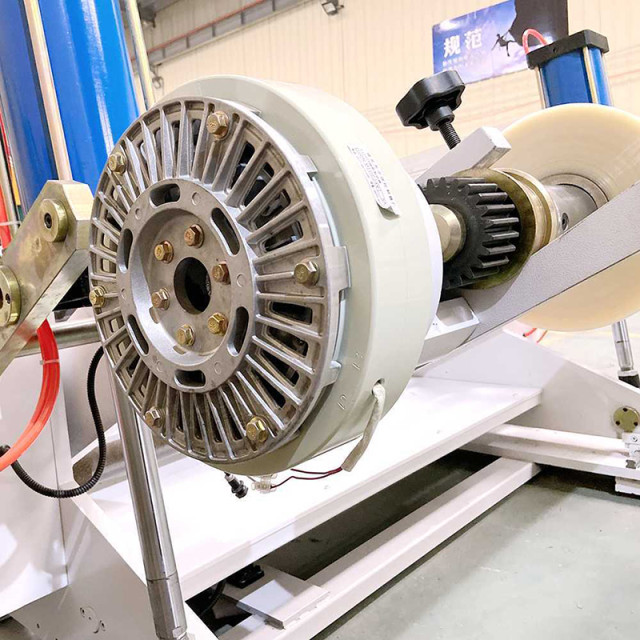

4. This machine has the function of the frequency converter timing device, automatic counting, stop work by alarm magnet powder tension control.
This Machine suitable for cutting different size paper, such as Hamburg Paper, Ice cream Paper, Regular Papers ,Glass Paper, Plastic Film (PVC, OPP, PET,CPP).
1. Adopts programmed control system, all the parameter can be displayed on control monitor and machine starts to work automatically.
