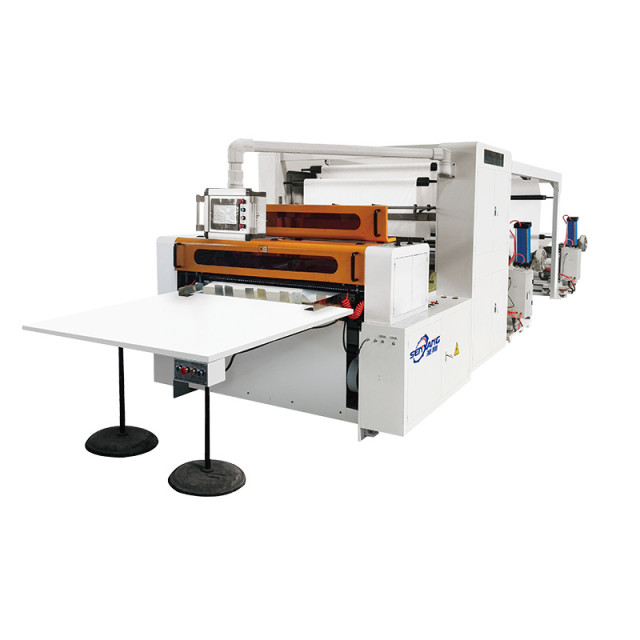

This machine suitable for cutting a large rolls of non woven fabric, which widely used in medical usage.
1. Adopts servo motor for controlling length cutting under accuracy.
2. Double feeding rolls, improve the capacity.
3. Adopt pneumatic, photoelectric sensor for controlling transmission system.
4. This machine integrates light, electricity, gas, simple operation, high cutting precision, stable machine and low noise.
5. Automatic stopping when material finish. Automatic counting.
|
Model |
SX-D1100-2R |
SX-D1400-2R |
|
Cutting Width |
1100 mm |
1400 mm |
|
Max Diameter of Material |
φ 1400 mm |
φ 1400 mm |
|
Min Width of Slitting |
50 mm |
50 mm |
|
Length of Cutting |
20-1200 mm |
20-1200 mm |
|
Cutting Speed |
10-150 times/min |
10-150 times/min |
|
Cutting Precision |
±0.2 mm |
±0.2 mm |
|
Total Power |
8.5 kw |
11 kw |
|
Weight |
3800 kg |
4500 kg |
|
Overall Size (L x W x H) |
8000*2000*2000 mm |
8000*2300*2000 mm |
Why Choose Us - Shengxiang
1. Quality Warranty
One Year Warranty
We PromiseCommissioning services: Product arrived on site, Our Technical Staff Will Guide you to Finish installation,
commissioning, and
training How to operations Until you get it (Installation charge, buyer responsible)
2. Training Services
We will provided a comprehensive technical training if necessary Training Include as following:
(1) Normal operating procedures for equipment training.
(2) Knowledge of routine maintenance on equipment training.
(3) Introduction of the equipment and service solutions for training.
3. Lifetime Service
Warranty expires, we will provide life-long service to all customers on a regular basis to provide equipment
upgrades and maintenance services.
4. Archives Service
After execution of the contract, we will establishment of archives, including the sale contract,
the technical parameters,
commissioning acceptance of a single report,
the relevant technical drawings.
This Machine suitable for cutting different size paper, such as Hamburg Paper, Ice cream Paper, Regular Papers ,Glass Paper, Plastic Film (PVC, OPP, PET,CPP).

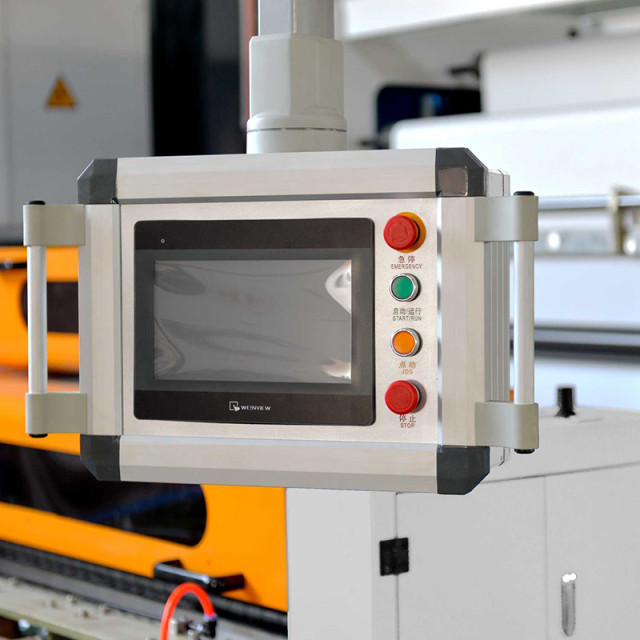

1. Adopts programmed control system, all the parameter can be displayed on control monitor and machine starts to work automatically.
1. This machine suitable for Cutting all kinds of thin paper (28-100g), PVC, PET film, paper-plastic composite, cloth, leather, and other large drum packaging materials, etc.
2. It adopts a servo motor for controlling constant-length cutting.
3. It adopts a pneumatic, a photoelectric sensor for controlling transmission system, with photocell, gas together.
4. It has the functions of easy operation, high precision, good stability, low noise. (photo tracking function is optional.)
5. This machine has the function of the frequency converter timing device, automatic counting, stop work by alarm magnet powder tension control.
1. This machine suitable for Cutting all kinds of thin paper (28-100g), PVC, PET film, paper-plastic composite, cloth, leather, and other large drum packaging materials, etc.
2. It adopts a servo motor for controlling constant-length cutting.
3. It adopts a pneumatic, a photoelectric sensor for controlling transmission system, with photocell, gas together.
4. It has the functions of easy operation, high precision, good stability, low noise. (photo tracking function is optional.)
5. This machine has the function of the frequency converter timing device, automatic counting, stop work by alarm magnet powder tension control.
