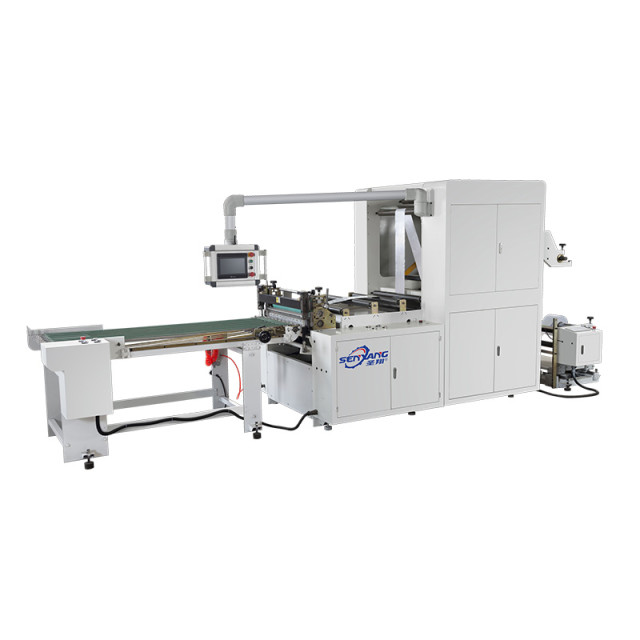

SX-H1100 Hamburger Paper Cutting Machine, SX-H1100 Hamburger Paper Cutting Machine Factory supply-Shengxiang Machinery: Achieve ur roll material slitting & cutting in High Precision

Product Details

This Machine suitable for cutting different size paper, such as Hamburg Paper, Ice cream Paper, Regular Papers ,Glass Paper, Plastic Film (PVC, OPP, PET,CPP).

1. Adopts programmed control system, all the parameter can be displayed on control monitor and machine starts to work

automatically.

2. Adopts inverter monitor to control material feeding.

3. Adopts auto meter counter, when reaching to the preset data, machine stops automatically.

4. Adopts semi-automatic tension controller.

5. All the transmission rollers are static/dynamic treatment.

6. Adopts emergency switch.

7. Adopts air blower to blow waste material off.

Technical Parameters

Model	SX-H700	SX-H900	SX-H1100
Cutting Width	550 mm	750 mm	950 mm
Max Diameter of Material	φ600 mm	φ600 mm	φ600 mm
Length of Cutting	20-1200 mm	20-1200 mm	20-1200 mm
Cutting Speed	30-150 times/min	30-150 times/min	30-150 times/min
Cutting Precision	±0.2 mm	±0.2 mm	±0.2 mm
Total Power	7 kw	7.5 kw	8 kw
Weight	3200 kg	3500 kg	3800 kg
Overall Size (L x W x H)	600016002000 mm	600017502000 mm	600019002000 mm

Why Choose Us

Why Choose Us - Shengxiang

1. Quality Warranty

One Year Warranty
We PromiseCommissioning services: Product arrived on site, Our Technical Staff Will Guide you to Finish installation,
commissioning, and
training How to operations Until you get it (Installation charge, buyer responsible)

2. Training Services

We will provided a comprehensive technical training if necessary Training Include as following:
(1) Normal operating procedures for equipment training.
(2) Knowledge of routine maintenance on equipment training.
(3) Introduction of the equipment and service solutions for training.

3. Lifetime Service

Warranty expires, we will provide life-long service to all customers on a regular basis to provide equipment
upgrades and maintenance services.

4. Archives Service

After execution of the contract, we will establishment of archives, including the sale contract,
the technical parameters,
commissioning acceptance of a single report,
the relevant technical drawings.
