This machine can suitable for various materials such as Paper, Nonwoven, Cellophane, PET, CPP, OPP, PE, PS, PVC, paper film-both plain and printed, etc.
For slitting counterfeit-proof labels, electronics, computers, and optical materials, film roll, and foil roll.
|
Model |
SX-FQJ-1300B |
SX-FQJ-1600B |
SX-FQJ-3200B |
|
Max Feeding Width |
1300 mm |
1600 mm |
3200 mm |
|
Max Feeding Diameter |
φ1400 mm |
φ1400 mm |
φ1400 mm |
|
Min Slitting Width |
30 mm |
30 mm |
30 mm |
|
Max Rewindning Diameter |
φ1000 mm |
φ1000 mm |
φ1000 mm |
|
Slitting Speed |
30-200 m/min |
30-200 m/min |
30-200 m/min |
|
Total Power |
9.5 kw |
12.5 kw |
20 kw |
|
Power Supply |
380V 50Hz |
380V 50Hz |
380V 50Hz |
|
Weight |
3300 kg |
3600 kg |
6000 kg |
|
Overall Size ( L x W x H ) |
3500*3400*1900 mm |
3500*3700*1900 mm |
3500*5300*1900 mm |
Why Choose Us - Shengxiang
1. Quality Warranty
One Year Warranty
We PromiseCommissioning services: Product arrived on site, Our Technical Staff Will Guide you to Finish installation,
commissioning, and
training How to operations Until you get it (Installation charge, buyer responsible)
2. Training Services
We will provided a comprehensive technical training if necessary Training Include as following:
(1) Normal operating procedures for equipment training.
(2) Knowledge of routine maintenance on equipment training.
(3) Introduction of the equipment and service solutions for training.
3. Lifetime Service
Warranty expires, we will provide life-long service to all customers on a regular basis to provide equipment
upgrades and maintenance services.
4. Archives Service
After execution of the contract, we will establishment of archives, including the sale contract,
the technical parameters,
commissioning acceptance of a single report,
the relevant technical drawings.
This machine can suitable for various materials such as Paper, Nonwoven, Cellophane, PET, CPP, OPP, PE, PS, PVC, paper film-both plain and printed, etc.
For slitting counterfeit-proof labels, electronics, computers, and optical materials, film roll, and foil roll.

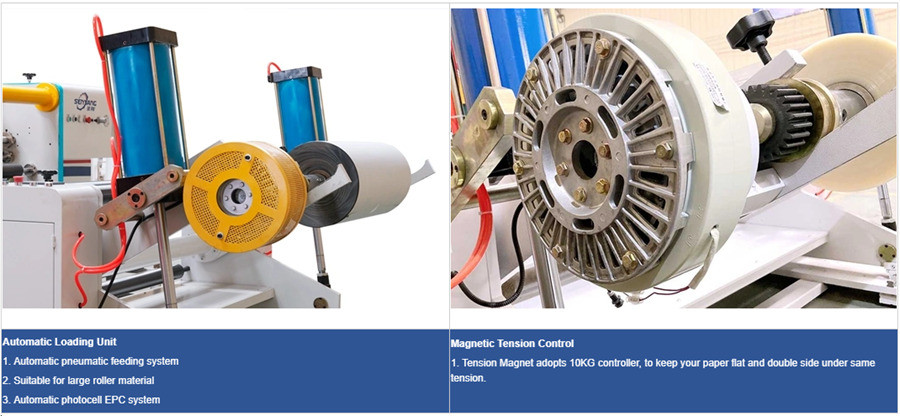

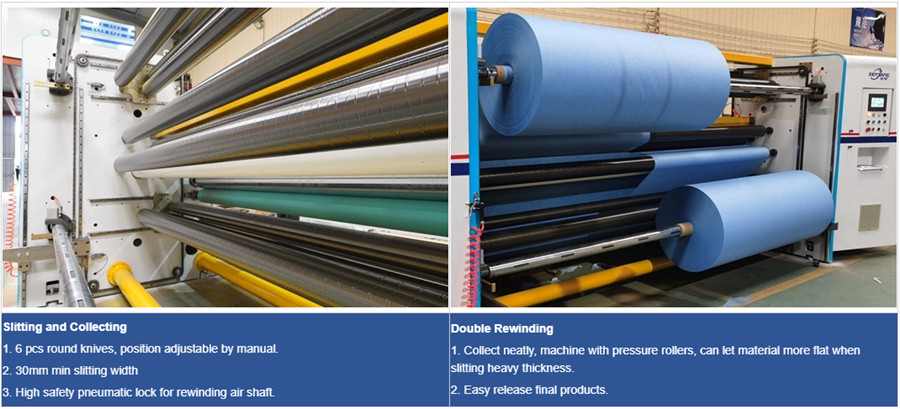

The machine adopts two pcs motor synchronous control, automatic tension control, central surface rewinding.
This machine can suitable for various materials such as, Cellophane, PET, CPP, OPP, PE, PS, PVC, paper film-both plain and printed, etc.
For slitting counterfeit-proof labels, electronics, computer and optical materials, film roll, and foil roll.
